Novastar MSD300 Sender Card For LED Display

The Novastar MSD300 is an M3 series sending card from NovaStar. This sending card supports video and audio inputs, and can decode and LED Video processor them before sending them to the LED screen via Ethernet port. A single MSD300 supports resolutions up to 1920×1200@60Hz. It communicates with the computer via USB port and is very convenient to use.

The MSD300 can be used for rental and fixed applications, such as live events, monitoring centers and various sports centers.

Features

  • 1 × DVI video input and 1 × audio input
  • 2 × Gigabit Ethernet output
  • 1 × light sensor connector
  • Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process.

Video Formats

Input Connector

Features

Bit Depth

Sampling Format

Maximum Input Resolution

DVI

8-bit

RGB 4:4:4

1920×1200@60Hz

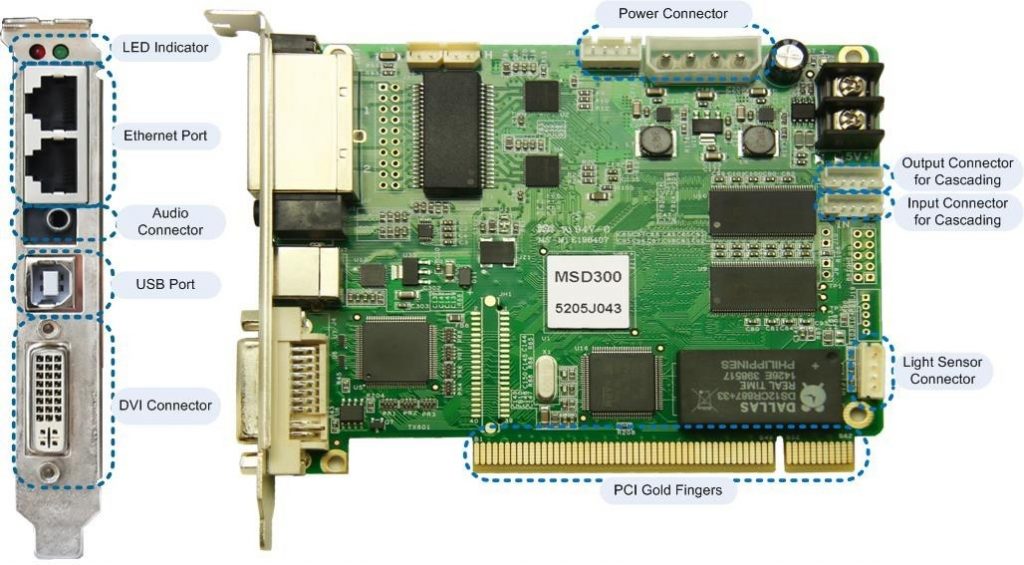

Appearance

Indicator

Red

Device operating indicator. Working status:

On: The LED power supply is normal.

Off: The power is not supplied or the power supply is abnormal.

Green

Device status indicator. Working status:

Slow flashing: Video display technology input unavailable

Normal flashing: Video input available

l Fast flashing: The screen is displaying the startup image.

Breathing: The Ethernet port redundancy has taken effect.

Input

DVI×1

Single-link DVI input connector

Supported maximum resolution: 1920×1200@60Hz, downward compatible

  • Resolution customizable

Maximum width: 3840 pixels Maximum height: 1920 pixels

AUDIO

Audio input connector

Output

RJ45×2

2 Gigabit Ethernet ports

Maximum loading capacity of a single port: 650,000 pixels

Supports redundancy between Ethernet ports.

Control

USB (Type-B)

Connects to the PC.

UART IN/OUT

Input/Output connector for cascading devices

Function Connector

LIGHT SENSOR

Connects to a light sensor to monitor ambient brightness, allowing for automatic brightness adjustment of LED display.

Power Supply

DC 3.3V~5.5V

DC power connector

Specifications



Electrical Parameters

Input voltage

DC 3.3 V–5.5 V

Rated current

0.5 A

Rated power consumption

2.5 W

Operating Environment

Temperature

-20°C–75°C

Humidity

0% RH–90% RH, non-condensing

Dimensions

126.1 mm × 99.7 mm × 14.0 mm

Net Weight

108.7 g

Certifications

EMC, RoHS, PFoS, FCC











Packing Information

Each unit is shipped with a carrying case and packing box.

Packing rules: The product and accessories packed in the packing box and the packing box packed in the carrying case





Carrying case

335 mm × 190 mm × 62 mm

Craft paper box printed with NOVASTAR

One unit in each box

Accessories: 1 × power cord, 1 × USB cable, 1 × DVI cable



Packing box

400 mm × 365 mm × 355 mm

Craft paper box printed with NOVASTAR
